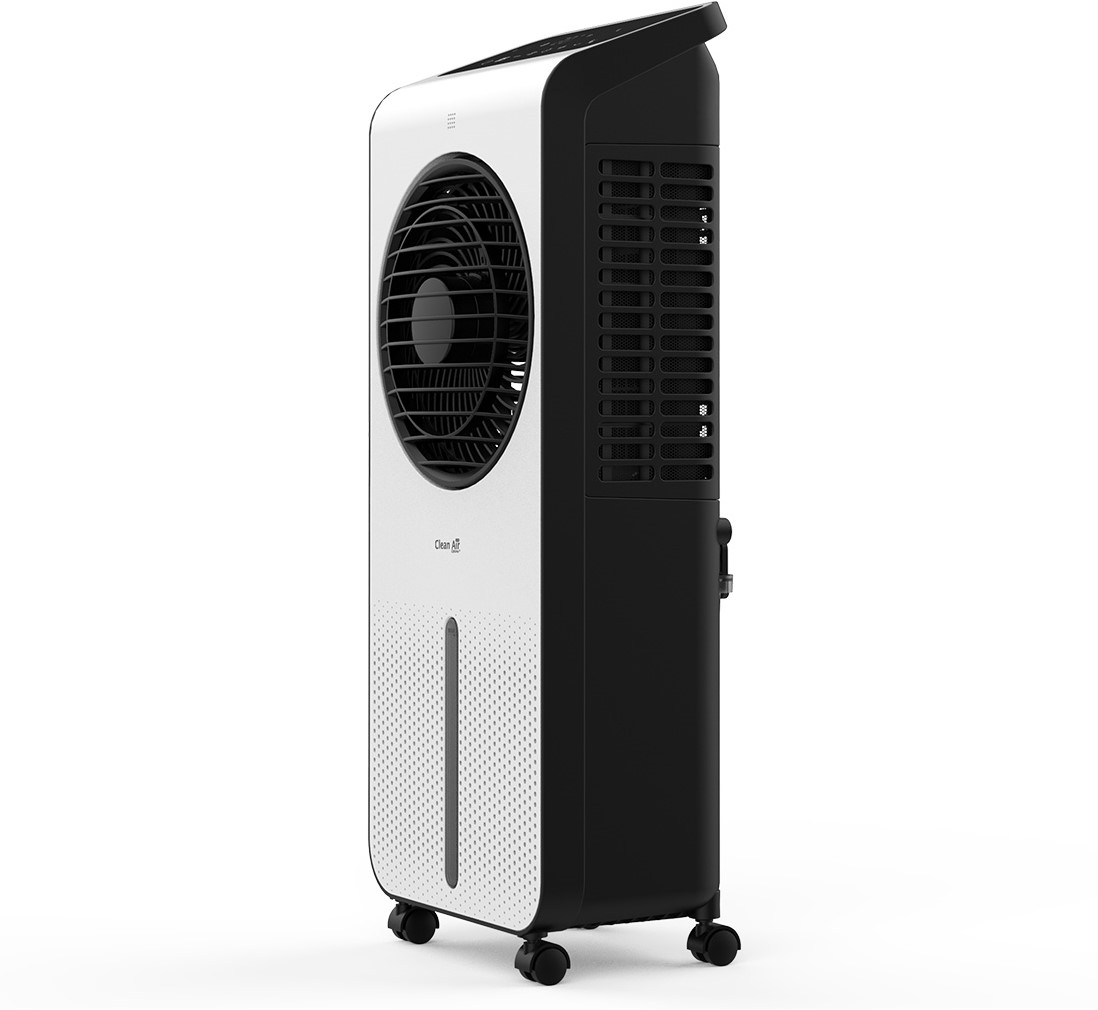

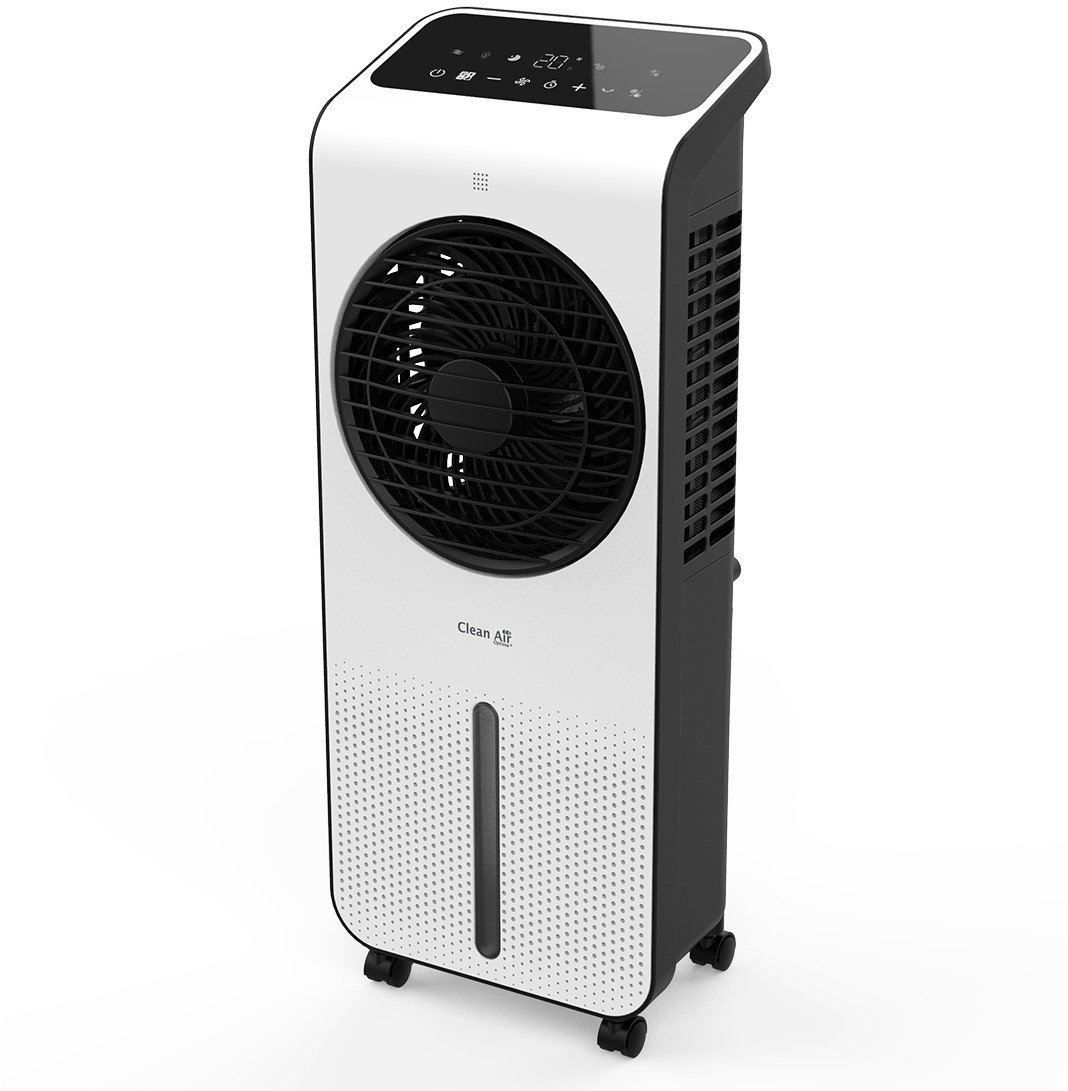

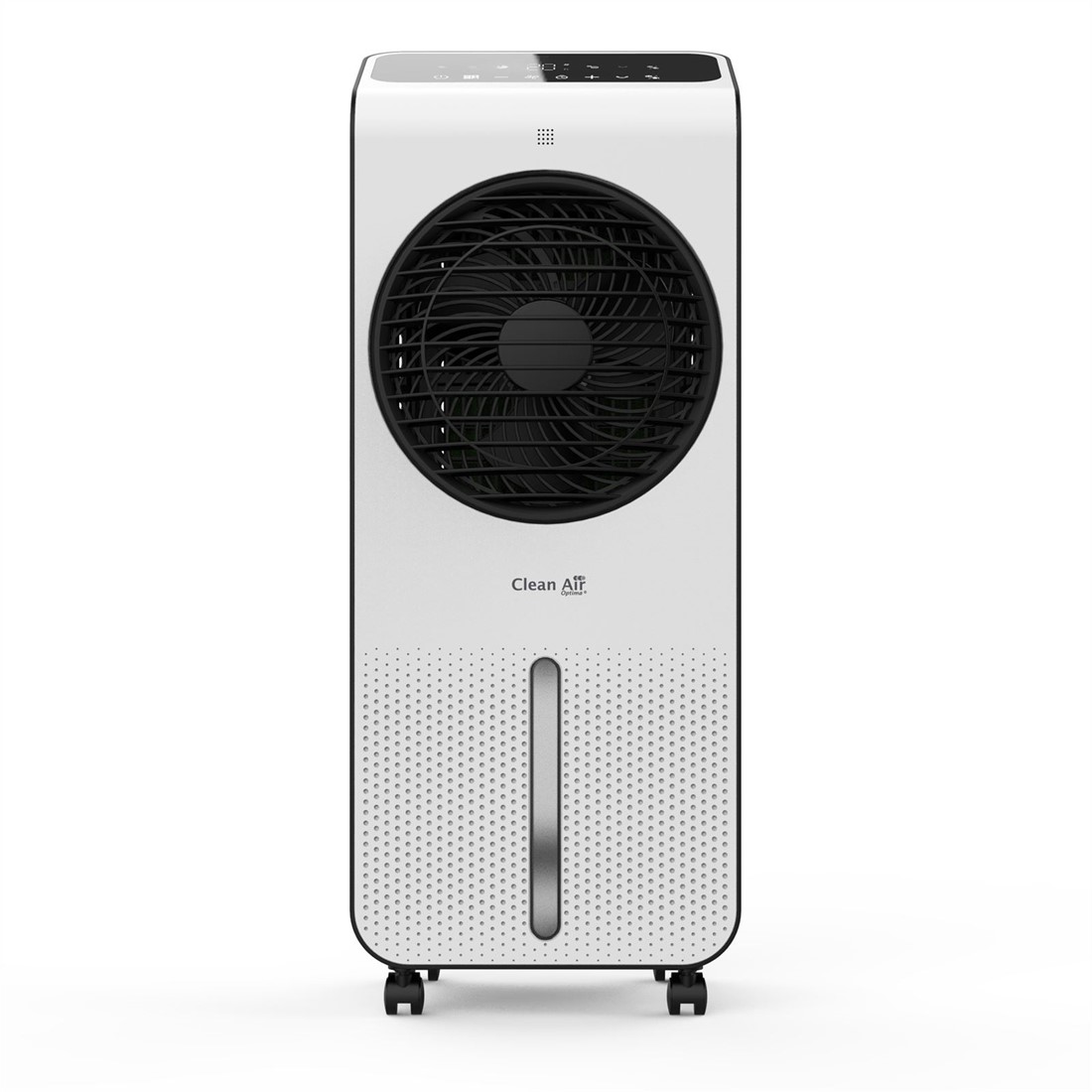

3in1 air cooler, humidifier and circulator fan CA-104
Suitable for rooms up to 40m² / 100m³ / 430ft²
Extensive application possibilities with the CA-104 air cooler
The Clean Air Optima® 3in1 design air cooler CA-104 Smart is the perfect solution for comfortable air cooling, air humidifying and creating a refreshing breeze through the separately switchable circulator fan function with 24 selectable fan levels. The 3in1 air cooler, humidifier and circulator fan CA-104 is characterised by its flexible setting options for:
- Cooling air during hot days by switching on the air cooler function
- Humidifying air during cold winter days
- Circulator fan during hot days with or without air cooler function
Air cooler for cooling on warm days!
The Clean Air Optima® 3in1 air cooler CA-104 provides cooling in the indoor area by means of a powerful air flow and evaporation of (cool) water in the ambient air. This is based on the principle of natural evaporative cooling of ice or cold water added to the water tank to cool warm (indoor) air without the use of chemical refrigerants. Also, the Clean Air Optima® 3in1 air cooler CA-104 does not require an air outlet hose as with an air conditioner, and is an energy- and cost-saving alternative to an air conditioning system with a consumption of only 24 watts max.
Natural evaporative cooling
You are undoubtedly familiar with this: when you blow on moist skin, you immediately feel a cooling effect as the evaporation process extracts heat. The evaporation process of the CA-104 air cooler is similar: At the back of the air cooler you will find the evaporative filter (1) with its honeycomb structure. The evaporator filter becomes saturated with water when you switch on the air cooler function. Warm air is passed from the back of the air cooler through the wet (cool) evaporative filter and cools by evaporation. The cooled air (2) is then blown into the interior by the low-noise fan.
Air cooler capacity CA-104 - 280 m³/hr
Air purification by ionizer
The built-in ionizer generates negative oxygen ions that purify and refresh the indoor air in addition to the cooling effect of the air cooler and circulator fan. Negative ions attach themselves to dust particles, microorganisms and other undesirable substances in the air and bind them together. These particles become heavier than the air, drop down and are thus filtered out of the air. Odours are neutralised by ionisation.
Humidifier in winter
Healthy, fresh and optimally humidified indoor air prevents irritated airways, dry skin and drying out of valuable interior items. In periods of low relative humidity, the Clean Air Optima® 3in1 air cooler CA-104 can also be used as a humidifier, realising optimal humidity in indoor spaces through natural cold evaporation.
Humidification capacity CA-104 / min. 160 ml/h - max. 350 ml/h
Circulator fan with active aerodynamic-
shaped fan blade
With the air cooler function switched off, the 3in1 air cooler CA-104 acts as a circulator fan in summer by producing a cooling breeze. Thanks to the innovative, long and actively aerodynamic fan blade design (Vortex), the circulator fan of the CA-104 air cooler moves air in a unique spiral form at a much higher speed compared to standard fans!
Rotating swirling spiral and conical airflow
The rotating swirling spiral and conical airflow of the air cooler CA-104 creates a reflective effect on walls, ceiling and floor. This results in a much better distribution of the airflow throughout the space compared to standard fans!
Unique circulator fan for cool performance on warm days
The CA-104 air cooler and circulator fan with its unique Clean Air Optima® rotating, swirling and spiral airflow technology, ensures that the entire volume of air in the indoor space circulates rapidly, coolly and continuously and, at the same time, is effectively ionised. The elegant and highly compact design of the CA-104 fits into any stylish home or business interior.
Air velocity up to 5 metres/second and airflow up to 720m³/h
Air cooler - Circulator fan 360° automatic oscillation
The air cooler CA-104 with the circulator fan function features a unique automatic vertical 360° oscillation functionality.
Easy to fill water tank
The water tank can be easily and quickly extended from the back of the Clean Air Optima® 3in1 air cooler CA-104 for filling with tap water under the tap, but can also be refilled from the top inside the unit itself.
The air cooler CA-104 Smart has a large water tank with a capacity of 4.5 litres.
Extremely quiet
The brushless DC motor of the Clean Air Optima® air cooler CA-104 is extremely quiet, energy-efficient and provides high-precision adjustment by regulating the air speed with a choice of 24 fan levels. Moreover, the BLDC motor in this unique air cooler of Clean Air Optima® has a much longer lifespan compared to a standard air cooler with an AC motor.
Ultra-quiet sleep mode programming
The sleep mode programming of the Clean Air Optima® air cooler CA-104 dims the display and switches the fan speed to an ultra-quiet breeze for a pleasant night's sleep.
The sleep mode fan speed provides a pleasantly mild and cooling airflow during the night with a sound level similar to leaves rustling in the wind.
Energy-saving system
The Clean Air Optima® air cooler CA-104 ensures you can enjoy a very comfortable indoor climate without wasting energy, thanks to the extremely energy-efficient brushless DC electric motor and the very low air resistance of the actively aerodynamic and long (Vortex) fan blade design.
Maximum power consumption of 24 watts.
Air cooler in compact design with easy operation
Practical handle
The Clean Air Optima® 3in1 air cooler CA-104 has a practical handle that makes it easy to move the air cooler from one room to another.
Compact design air cooler fits any interior
The compact and beautifully styled design of the air cooler and its neutral colour scheme make the unique Clean Air Optima® 3in1 air cooler CA-104 fit any interior.
The clearly set out digital control panel on top of the air cooler CA-104 features eight touch keys for easy selection of the desired settings.
Setting options of the 3in1 air cooler CA-104
- ON/OFF: for switching the air cooler/humidifier and circulator fan on and off
- Mode: for setting the desired programme: normal airflow, natural airflow, sleep mode
- Speed: fan speed adjustable in 24 levels using the + and - buttons
- Timer ON / Timer OFF: 1-12 hour timer function with adjustable switch-on and switch-off time
- Swing: for setting 360° oscillation function for air cooler and circulator fan
- Aircooler / Airhumidifier: air cooler/humidifier on, air cooler/humidifier off
