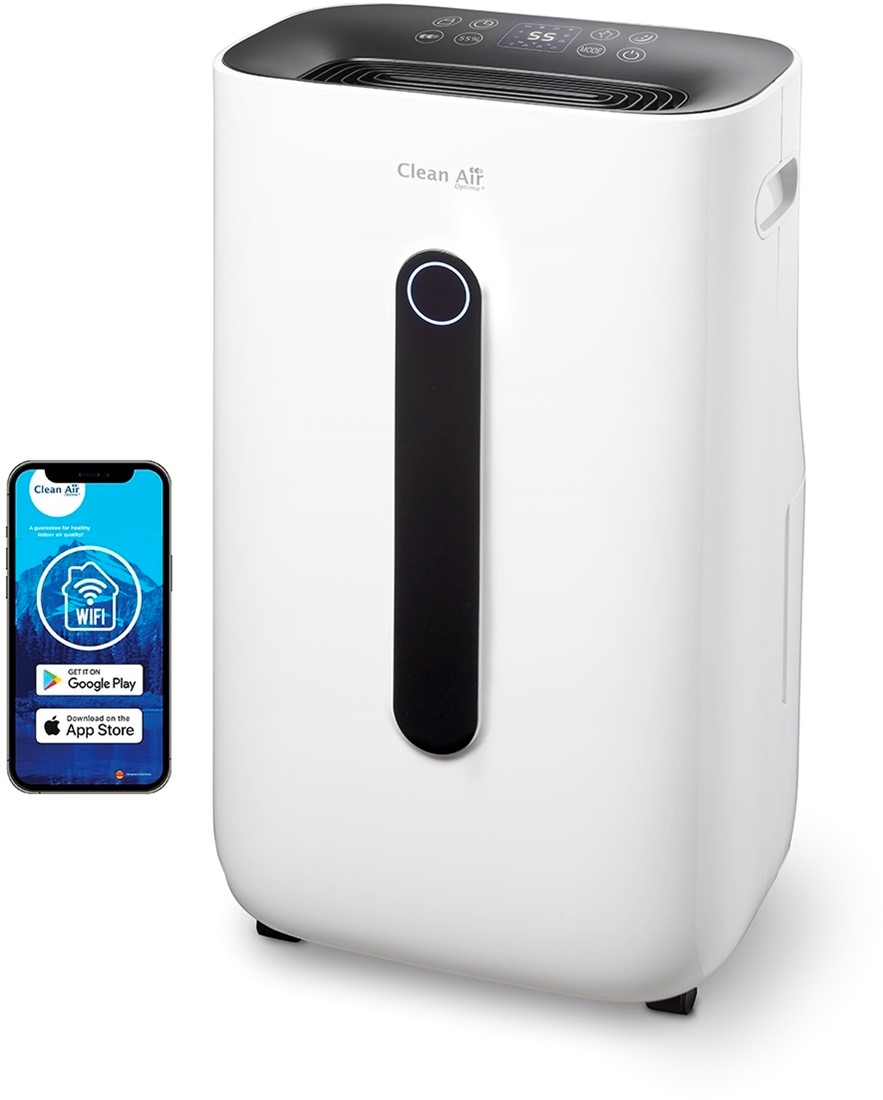

Dehumidifier & air purifier CA-705 Smart

Multifunctional dehumidifier CA-705 Smart for an optimal indoor climate

Suitable for rooms up to 50m² / 125m³ / 540ft² - Dehumidification capacity 16 liters per day(30°C / Rv80%)


For an optimal indoor climate, humidity is crucial. The optimal humidity recommended by medical specialists in closed rooms is in the range of 40 to 60% relative humidity.

If the air in indoor spaces is too humid, the air quality can be greatly adversely affected by mold spores, allergens and respiratory problems.

Optimal humidity is essential for health and damage prevention
The multi-purpose Clean Air Optima® dehumidifier CA-705 Smart functions preventively to prevent high humidity and all-destructive corrosion, harmful condensation, ice and mold, prevents unwanted bacterial growth, reduces odor transfer and is effective for building drying in existing or new construction.

The powerful Clean Air Optima® condensation - dehumidifier CA-705 Smart battles rust and mold!

In addition to the containment of mold spores, this multifunctional dehumidifier CA-705 Smart from Clean Air Optima® frees indoor air from troublesome animal hairs, pollen and dust through the integrated continuous operation and highly effective air purifier function with five-fold filter technology.

Allergy patients can finally breathe healthy again!
With its slimline, fitted lines in the exclusive design and neutral color scheme, this compact dehumidifier fits into any interior. The Clean Air Optima® condensing - dehumidifier CA-705 Smart is suitable for automatic dehumidification due to its built-in hygrostat. Just configure the desired humidity and this efficient dehumidifier will do the rest.

Dehumidifier CA-705 Smart: a four-season system

With the 2in1 function for dehumidification and air purification, the CA-705 Smart ensures an optimal indoor climate all year round. When the set relative humidity is reached, dehumidification stops. With its continuous air cleaning function, the multifunctional Clean Air Optima® CA-705 Smart frees indoor air of allergens, mold spores, annoying animal hairs, pollen, (fine) dust and odors all year round.

Indoor air dehumidification by condensation technique

The compact and powerful Clean Air Optima® condensation - dehumidifier CA-705 Smart with 2in1 system for dehumidification and air purification extracts excess moisture from indoor rooms up to 50m²/125m³ with a capacity of up to 16 liter / day (30°C/Rv80%) and actively protects against the development of mold, stains, corrosion and mud odor. This also protects the building substance and more importantly your health.

The condensation dryer is the type of dehumidifier most commonly used and the CA-705 Smart can be used in a wide temperature range between 5 and 32°C.

This effective dehumidifier is equipped with a compressor that directs the moist indoor air past a cooling element. Humid ambient air is thus cooled in a very short time. The moisture in the air condenses because air can hold less moisture at low temperatures. The condensation is collected in the water tank or can be drained directly by connecting the supplied drain hose.

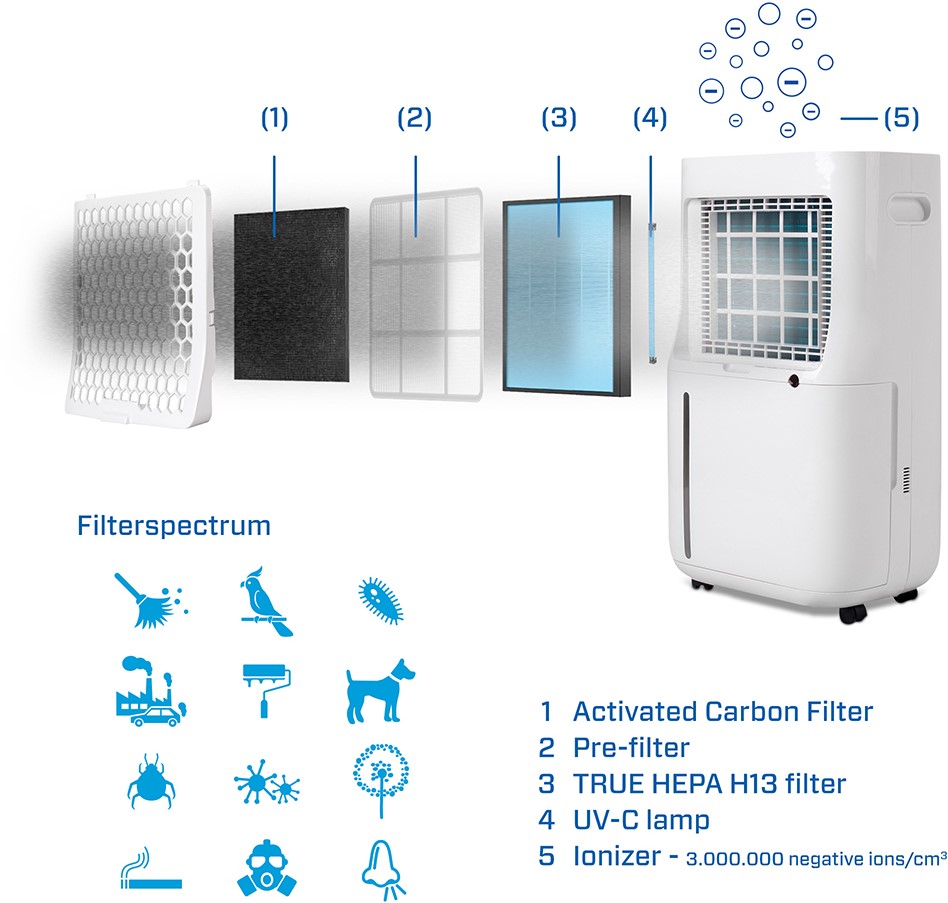

Five filter technologies for effective air cleaning

1. Activated Carbon Filter
Activated carbon neutralizes smoke, chemicals, gases and odors, prevents the growth of bacteria, viruses and fungi.
2. Pre-filter
Pre-filter captures large dust particles such as: lint, hair and pet dander.
3. TRUE HEPA H13 filter with nano silver coating
Purifies 99.97% of all suspended matter down to 0.3 micrometers (0.3 µm) from the air. The HEPA filter is the most effective air filter for removing:
• (fine) dust, cigarette smoke, pollen
• allergens
• any other solid particles
The antibacterial layer of nano silver coating on the filter, eliminates bacteria and fungi..
4. UV-C Lamp
The ultraviolet light from the permanent lamp (UV-C radiation) with a wavelength of 254nm, kills health-damaging microorganisms such as: germs, viruses, fungi (mold spores) and bacteria.
5. Ionisator
Capacity > 3,000,000 negative ions / cm³ that are dispersed throughout the room, neutralizing harmful substances and odors. The ionizer produces negative ions for cleaning indoor air and enriching it with active oxygen. Unpleasant odors are neutralized and pollutants are purified from the air. Negative ions also have a strong antistatic effect.

Built-in hygrostat for automatic dehumidification

The Clean Air Optima® condensing - dehumidifier CA-705 Smart features a built-in hygrostat for measuring, monitoring and automatically controlling relative humidity. The desired humidity can be set between 35 and 80% relative humidity. By default, this dehumidifier is pre-programmed to achieve the medically recommended optimal relative humidity of 55%. When the minimum attainable value of 35% is set, continuous operation follows, with the unit stopping only at automatic shutdown due to a full water tank.

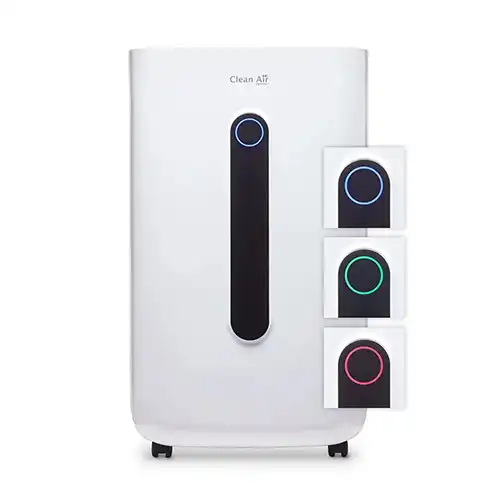

The thoughtful design also communicates the humidity via the round color monitor on the front of the unit.

BLUE = dry air range = <53%
GREEN = pleasant range = 53% - 68%
RED = high relative humidity = >68%

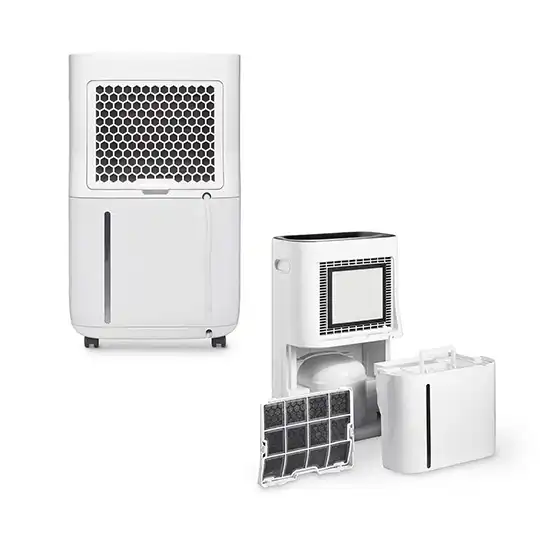

Large water tank and permanent water drainage

The unit automatically shuts off when the water tank is full with LED signal in the display. The large water tank of the CA-705 Smart dehumidifier has a capacity of 6,5 liters and is equipped with a handle. After opening the swivel part at the back of the device, the tank is easily removable.

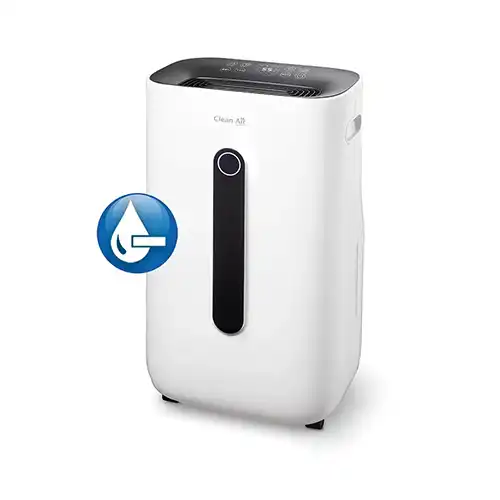

The condensation collected in the water tank can be discharged directly by connecting the supplied drain hose. This makes the CA-705 Smart dehumidifier suitable for continuous operation and unattended use.

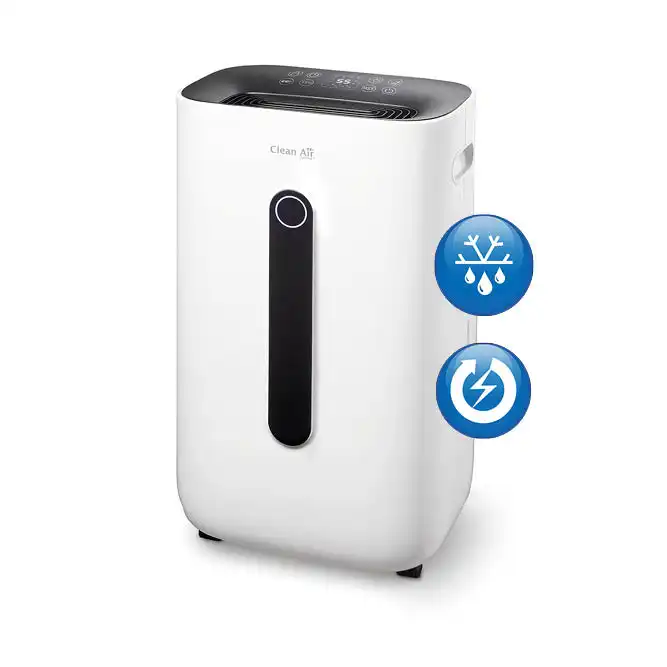

Automatic defrost and restart function

The Clean Air Optima condensing - dehumidifier CA-705 Smart features an automatic defrost function. As soon as the sensor detects a temperature below the set value, defrosting starts automatically and also stops automatically when ready. The defrosting process involves making the evaporator ice-free again by stopping the cooling process and running the fan, which melts the ice. When restarted, the dehumidifier automatically continues its operation while preserving the settings.

Even after a power outage, automatic restart of the device follows with preservation of settings.

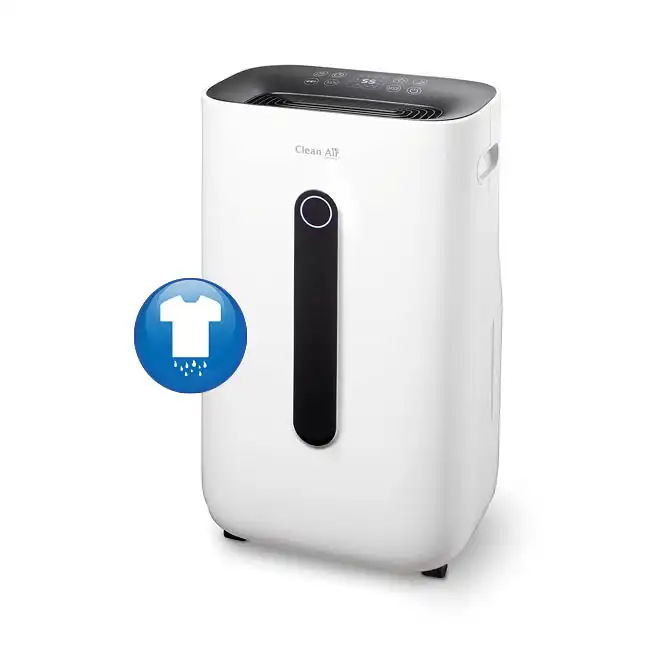

Laundry drying

The Clean Air Optima dehumidifier CA-705 Smart with 2in1 system for dehumidification and air cleaning supports the drying of your laundry. The swing function with the large rotation angle between 45° - 90° of the oscillation valve ensures good air circulation in the washroom.

The pre-filter and TRUE HEPA H13 filter with nano silver coating captures large dust particles such as dust fibers and lint from the washroom, and the activated carbon filter neutralizes odors.

The negative ions produced by the ionizer during the wash drying process also have a strong antistatic effect which acts positively on wash drying.

Easy to use

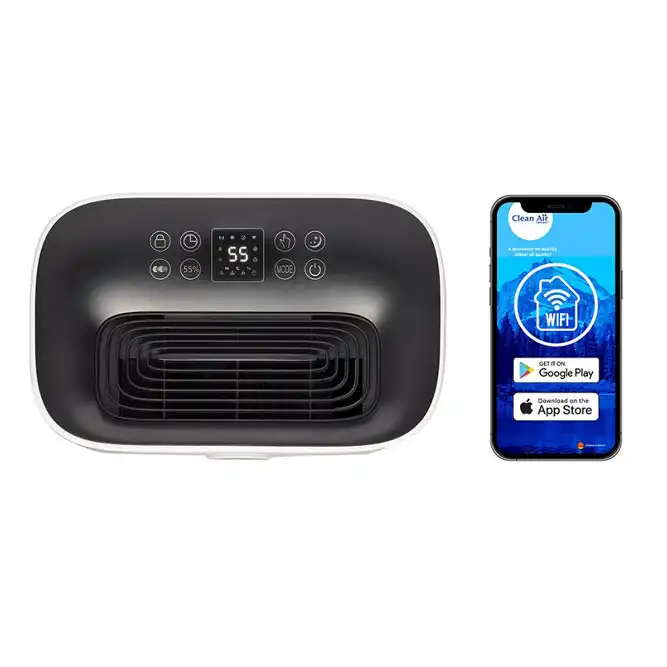

The convenient digital control panel on the top of the dehumidifier features eight touch sensitve buttons for easy selection of desired settings.

Settings CA-705 Smart
• Mode button for setting the desired program (Normal, Continuous, Air Cleaning, Dry Clothes)
• Setting for desired humidity adjustable between 30-80%
• Fan Speed High-Low
• 0-24 hour timer function with adjustable on and off time
• 0-24 hour weekly programming on and off time (adjustable via App)
• Sleep mode

The functions are adjustable via the digital control panel and/or the Clean Air Optima® App.

Usage and maintenance

Water tank and drainage

First turn off the appliance and then unplug it.

Emptying of the water tank
At the back of the device there is a revolving door in the lower part. After opening the door, the water tank can be taken out by the handle. After emptying, replace the water tank in reverse order.

Automatic water drainage
By connecting the supplied drain hose (10 mm round / 1 meter long) to the water tank, it is possible to drain the water continuously. Caution: the drain hose must always face downward and the end of the hose must always be below the height of the connection to the water tank to prevent water damage. By using the standard setting, implementing the unit with hygrostat and installing the drain hose, the CA-705 Smart dehumidifier is suitable for long-term use in unattended rooms.

Filter maintenance (display message 00)

Maintenance of permanent pre-filter
Clean permanent pre-filter every 2 weeks by vacuuming or rinsing with lukewarm water (Attention: replace filter dry. Do not clean with water above 40°C, not with alcohol, gasoline or other flammable agents).

1. Activated Carbon Filter
The activated carbon filter effectively filters gases, chemicals, cigarette smoke, volatile organic compounds (VOC) and odors such as pet, mold, kitchen and paint odors formaldehyde, benzene, ammonia, nicotine, etc. from indoor air.

2. TRUE HEPA H13 filter with nano silver coating
Purifies 99.97% of all suspended matter down to 0.3 micrometers (0.3 µm) from the air. The HEPA filter is the most effective air filter for removing:
• (fine) dust, cigarette smoke, pollen
• allergens
• any other solid particles

The antibacterial layer of nano silver coating on the filter eliminates bacteria and fungi.

Replacing filters
Replace the Activated Carbon Filter + TRUE HEPA H13 Filter after 3-6 months.

Miscellaneous

Wipe the outside of the device regularly with a soft, slightly damp cloth.

When the CA-705 Smart dehumidifier is not in use for an extended period of time, we recommend cleaning the device thoroughly beforehand and allowing all parts to dry thoroughly. The device should be stored in a cool and dry area.
